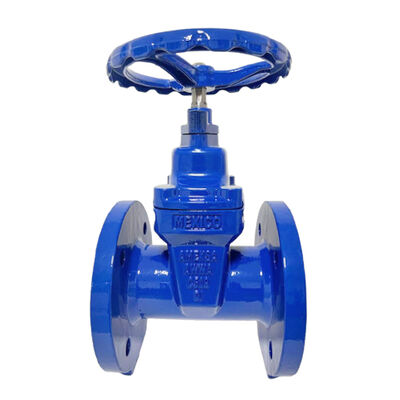

AME-CRC 509 Resilient Seat Gate Valve with Bidirectional Bubble-Tight Seal, Full-Bore Design, and Low-Torque Operation for Industrial Applications

  • AME-CRC 509 Resilient Seat Gate Valve with Bidirectional Bubble-Tight Seal, Full-Bore Design, and Low-Torque Operation for Industrial Applications
Luogo di origine Cina
Marca YOUWEI
Certificazione WARS CE EAC

Contattatemi per campioni e buoni.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

Se avete qualche problema, offriamo assistenza online 24 ore su 24.

x
Dettagli
Materiale Fusione, ottone, acciaio inossidabile, ferro duttile, GGG40 Dimensione della porta DN50-DN1200,Standard,2"-24",DN50-800,3/4"
Energia Manuale, Azionamento elettrico, Idraulico, Azionamento con volantino, GO Pressione Media pressione, bassa pressione, PN10-16, PN1.0/PN1.6,250PSI
temperatura dei media Temperatura media, temperatura normale, bassa temperatura, -10 ~ 100 ℃ Media Acqua, petrolio ecc., gas e così via
Applicazione Generale,irrigazione,distribuzione acqua,industria,sistema idrico Struttura Saracinesca, farfalla, valvola a saracinesca non ascendente
Standard o non standard Standard Nome del prodotto saracinesca, valvola a saracinesca elettrica in ghisa con stelo non ascendente DN40-DN600, valvola a
Standard DIN,BS,JIS,F5;AWWA C509/C515;ANSI,DIN3352 Misurare DN40-DN600,DN50 ~ DN 1000,2''-24'',DN15 A100
Connessione Estremità flangiate, doppia flangia, BSP, estremità presa, filettatura femmina Materiale del corpo Ferro duttile, DI/CI, DI, ghisa, ottone
Colore Blu,Richiesta del cliente,Requisito del cliente,Giallo,GRIGIO Medio Acqua, Acqua Petrolio Gas
Tipo Valvola a saracinesca, apertura normale, 2 vie, stelo non ascendente/NRS Tipo di valvola valvola a saracinesca
Foca rivestito in gomma, metallo, PTFE
Evidenziare

Bidirectional Bubble-Tight Seal Gate Valve

,

Full-Bore Design Resilient Seat Gate Valve

,

Low-Torque Design Industrial Gate Valve
Lasciate un messaggio
Descrizione di prodotto
Built for Critical Processes｜AME-CRC 509 Resilient Gate Valve
Ensuring zero media loss and zero operational downtime in demanding applications where reliability is non-negotiable.

AME-CRC 509 Resilient Seat Gate Valve: Defining Reliability, Securing Every Critical Process
In demanding applications where zero leakage, long service life, and minimal maintenance are essential, the AME-CRC 509 Resilient Seat Gate Valve delivers uncompromising performance. Engineered as durable insurance for your entire fluid handling system, this valve features innovative resilient sealing design and robust construction to ensure dependable performance from water treatment and municipal networks to industrial cooling systems.

Core Advantages: Why the CRC 509 is Your Intelligent Choice
Ultimate Seal, Drop-Tight Performance
Advanced resilient seat with fully encapsulated high-performance rubber or EPDM creates bidirectional bubble-tight sealing against the gate, eliminating internal leakage. Self-compensating design automatically adjusts for minor wear over time.
Exceptional Durability for Long-Term Value
Full-bore design provides unobstructed flow path with very low flow resistance, reducing energy consumption. Premium cast body with advanced epoxy coating offers superior corrosion resistance. Reinforced disc combines strength and sealability.
Smooth Operation & Simplified Maintenance
Low-torque design ensures easy operation even in large-diameter applications. Modular internals allow for easy in-line maintenance with seat/disc sealing assembly replaceable under pressure, significantly reducing downtime.

Key Technical Specifications
Type Resilient Seat, Rising Stem Gate Valve
Size Range DN50 - DN600 (2" - 24") | Standard & Custom Sizes Available
Pressure Rating PN10/16, ANSI Class 150/300
End Connections Flanged, compliant with ISO, DIN, ANSI, and other international standards
Suitable Media Water, Sewage, Neutral Gases, Oils, and a wide range of mild chemical media
Actuation Manual (Handwheel / Gear Operator), Electric, or Pneumatic Actuation Available
Testing Sealed in accordance with stringent API 598, EN 12266, or equivalent standards

Ideal Application Scenarios
The CRC 509 is the ideal choice for isolation and control in:
Municipal Water: Potable water distribution, fire protection systems, wastewater treatment plants
Building Services: HVAC, plumbing, and drainage systems in commercial complexes, hospitals, and institutions
Industrial Processes: Cooling water, circulating water, power generation, and chemical plants
Infrastructure & Irrigation: Main line isolation, pump stations, and large-scale agricultural irrigation networks

Choosing AME-CRC 509 is an Investment in Peace of Mind
Selecting the CRC 509 means investing in decades of operational security for your system. It mitigates water loss, production downtime, and environmental risks associated with leakage. Its exceptional reliability translates directly into a lower total cost of ownership and higher operational efficiency.
Request a quote or download the detailed technical brochure today. Let the AME-CRC 509 become the most trusted guardian in your fluid system.
