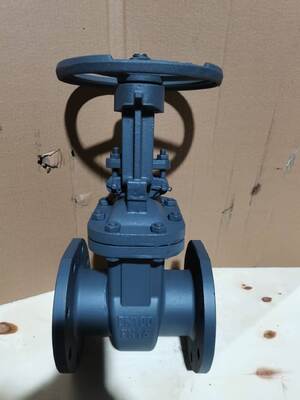

GOST Standard WCB Carbon Steel Double Flange Gate Valve with Bidirectional Sealing for Industrial Applications

  • GOST Standard WCB Carbon Steel Double Flange Gate Valve with Bidirectional Sealing for Industrial Applications
Luogo di origine Cina
Marca YOUWEI

Contattatemi per campioni e buoni.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

Se avete qualche problema, offriamo assistenza online 24 ore su 24.

x
Dettagli
Materiale Fusione, ottone, acciaio inossidabile, ferro duttile, GGG40 Dimensione della porta DN50-DN1200,Standard,2"-24",DN50-800,3/4"
Energia Manuale, Azionamento elettrico, Idraulico, Azionamento con volantino, GO Pressione Media pressione, bassa pressione, PN10-16, PN1.0/PN1.6,250PSI
temperatura dei media Temperatura media, temperatura normale, bassa temperatura, -10 ~ 100 ℃ Media Acqua, petrolio ecc., gas e così via
Applicazione Generale,irrigazione,distribuzione acqua,industria,sistema idrico Struttura Saracinesca, farfalla, valvola a saracinesca non ascendente
Standard o non standard Standard Nome del prodotto saracinesca, valvola a saracinesca elettrica in ghisa con stelo non ascendente DN40-DN600, valvola a
Standard DIN,BS,JIS,F5;AWWA C509/C515;ANSI,DIN3352 Misurare DN40-DN600,DN50 ~ DN 1000,2''-24'',DN15 A100
Connessione Estremità flangiate, doppia flangia, BSP, estremità presa, filettatura femmina Materiale del corpo Ferro duttile, DI/CI, DI, ghisa, ottone
colore Blu,Richiesta del cliente,Requisito del cliente,Giallo,GRIGIO Medio Acqua, Acqua Petrolio Gas
Tipo Valvola a saracinesca, apertura normale, 2 vie, stelo non ascendente/NRS Tipo di valvola valvola a saracinesca
Foca rivestito in gomma, metallo, PTFE
Evidenziare

GOST Standard Gate Valve

,

WCB Carbon Steel Double Flange Gate Valve

,

Bidirectional Sealing Cast Iron Gate Valve
Lasciate un messaggio
Descrizione di prodotto
GOST Cast Iron Gate Valve Double Flange WCB
This Double Flange Gate Valve is engineered for demanding industrial applications requiring reliable isolation in pipelines. Manufactured with a robust WCB (A216 Grade WCB) carbon steel body and bonnet, it offers superior strength and excellent resistance to high temperatures and pressures. The valve conforms to GOST standards, ensuring compatibility and performance specifications for markets and projects requiring adherence to these norms.
Key Features & Specifications
  • Body & Trim Material: Primary components are constructed from ASTM A216 WCB carbon steel. Internal trim (seat, wedge/disc) is typically furnished with 13% Chrome (410) stainless steel or harder alloys based on service conditions, providing enhanced erosion and wear resistance.
  • Design & Construction: Features a full-bore design for minimal pressure drop and piggable pipelines. The sturdy, double-flanged ends (conforming to GOST flange standards) facilitate secure bolting into the piping system. The valve utilizes a flexible wedge or solid wedge design (depending on model) to ensure tight sealing and compensate for potential seat wear or thermal expansion.
  • Standards & Compliance: Designed, manufactured, and tested in accordance with GOST standards (including but not limited to GOST 9544, GOST 33259, etc.) for dimensions, pressure ratings, and quality. Also incorporates relevant API, ANSI, and ASME design principles where applicable.
  • Pressure & Temperature Ratings: Suitable for a wide range of services. Typical pressure class ratings correspond to PN16, PN25, PN40, or Class 150, Class 300 equivalents under GOST. Suitable for working temperatures from approximately -29°C to +425°C, depending on seal materials.
  • Operational Mode: Standard operation is via a handwheel (rising stem design for clear visual indication of open/closed status). Options for gear operation are available for larger sizes or higher pressure applications. Can be adapted for automated actuation (electric, pneumatic, hydraulic).
  • Sealing & Performance: Metal-seated design ensures reliable service in high-temperature environments. Graphite packing provides effective stem sealing. The valve is designed for bidirectional sealing, offering shutoff capability regardless of flow direction.
  • Applications: Ideal for isolation service in a wide array of industries including oil & gas, petrochemical, power generation, water supply networks, and industrial process plants. It handles fluids such as water, steam, oil, gas, and non-aggressive chemicals.
  • Testing: Each valve undergoes rigorous individual testing, including shell strength test, seat leak test (bubble-tight per GOST requirements), and backseat test to guarantee integrity before shipment.
Technical Specifications
Specification Details
Body Material ASTM A216 WCB Carbon Steel
Design Standard GOST 9544, GOST 33259
Pressure Ratings PN16, PN25, PN40, Class 150, Class 300
Temperature Range -29°C to +425°C
Sealing Type Bidirectional Metal Seated
Operation Handwheel, Gear Operation, Automated Actuation
This GOST Cast Steel Gate Valve represents a heavy-duty, high-performance solution for critical shut-off applications. Its WCB construction and compliance with GOST standards make it a trusted and specified choice for pipeline systems where durability, safety, and regulatory adherence are paramount.
